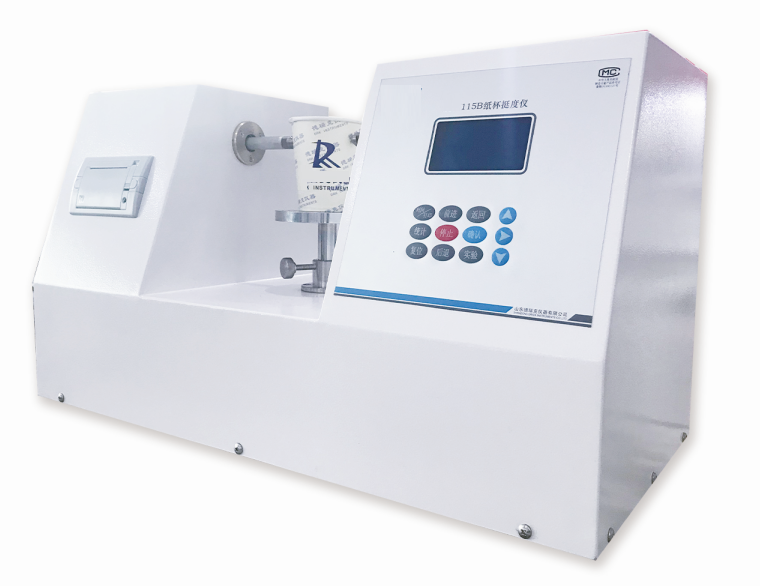

LZ115 Paper-cup Stiffness Tester
Product Features
1. Mechatronics modern design concept, compact structure, beautiful appearance, easy to use;
2. Automatic clamping of sample, good clamping mechanism;
3. High-speed ARM processor;
4. Intuitive user interface;
5. Precision load cell;
6. Statistical information.
Technical standards

Items	Parameters
Measuring range	(1-20)N,resolution 0.01N
Indicative accuracy	Indicative error:0.1%;Indicative variability:≤1%
Test speed	(50±2.5)mm/min
Relative moving distance of probe	(9.5±0.5)mm
Probe-to neutrality	≤0.2mm
Opening distance of the two measuring heads	(50-160)mm
Instrument dimensions	590mm*270mm*340mm
Power supply	AC 220V±5%; 50Hz
