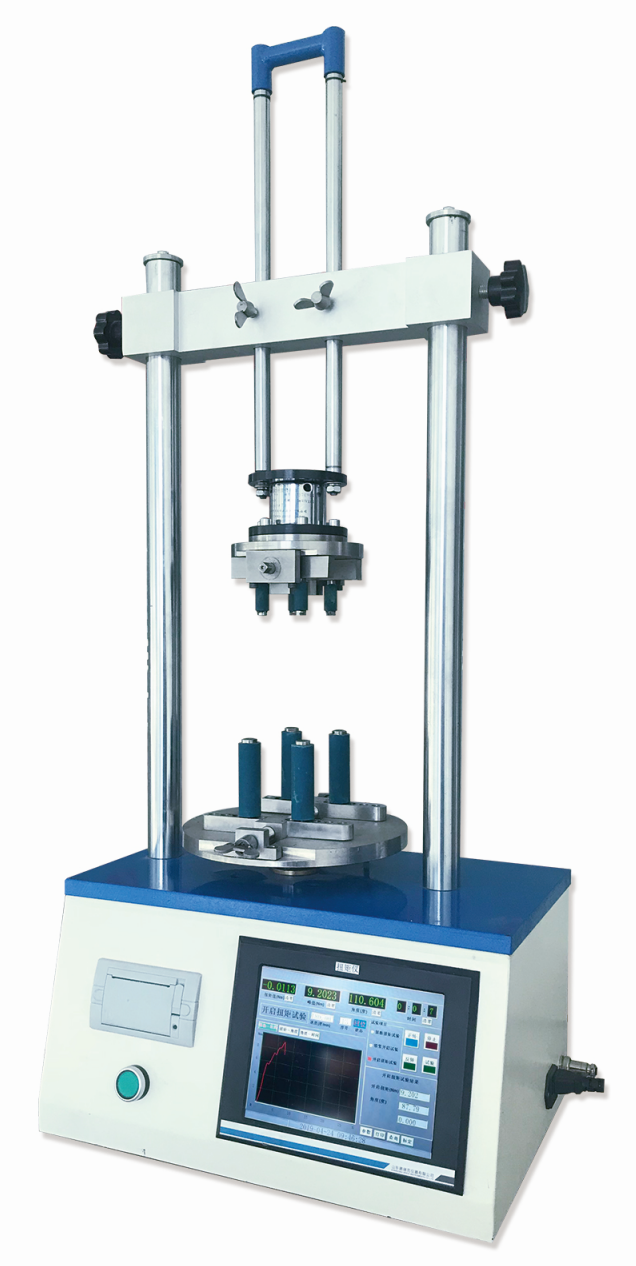

LZ219B Automatic Torque Tester
Product Features
1. Microcomputer control, touch screen operation, menu interface, Mechatronics design concept;
2. The test process is fully automated to avoid the error of test results caused by manual operation;
3. The fixed force can be set to lock or open,and the instrument can rotate automatically;
4. Continuous acquisition of test data and automatic maintenance of peak value;
5. Statistical analysis of group data and printing of single or multiple experimental results;
6. Double mode design of locking force and opening force;
7. Test times can be set, data deletion,statistical functions;
8. Auto-clearing, intelligent fault indication,overload protection, test parameter power-off record.
Technical standards

Items	Parameters
Specification	20Nm(Standard)(40Nm,50Nm range optional)
Accuracy	Level 1
Clamping range	Φ5mm-Φ170mm(Diameter)
Automatic rotation speed	10r/min
Power supply	AC 220V±5% 50Hz
