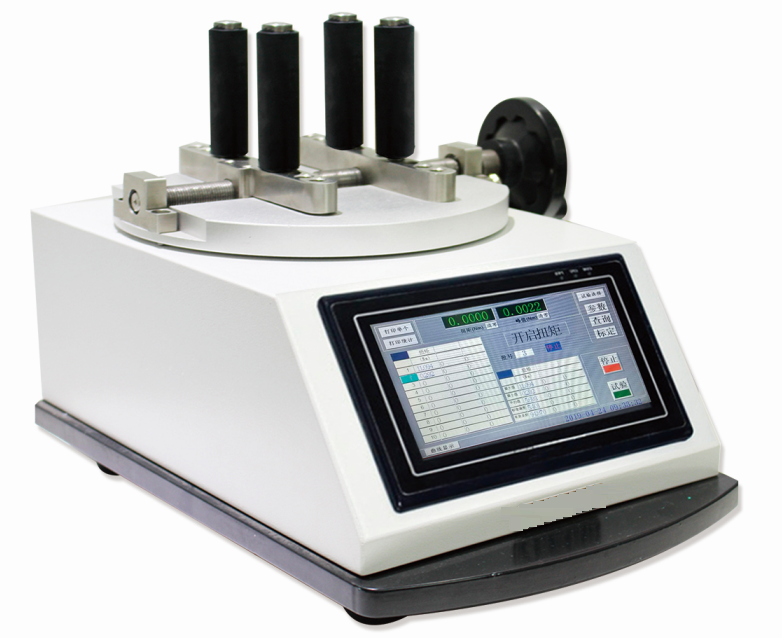

LZ219 Torque Tester
Product Features
l. Microcomputer control, touch screen operation, menu interface, Mechatronics design concept;
2. Continuous acquisition of test data and automatic maintenance of peak value;
3. Statistical analysis of group data and printing of single or multiple experimental results;
4. Double mode design of locking force and opening force;
5. Test times can be set, data deletion, statistical functions;
6. Automatic clearing, intelligent fault indication, overload protection, power-off memory of test parameters;
7. Small size, easy operation, reliable performance and fast test.
Technical standards

Items	Parameters
Specification	20Nm(Standard)(40Nm,50Nm range optional)
Accuracy	Level 1
System resolution	0.001Nm
Clamping range	Φ10mm-Φ170mm(Diameter)
Power supply	AC 220V 50Hz
Shape size	350mm(L)*240mm(B)*140mm(H)
Net weight	19kg
