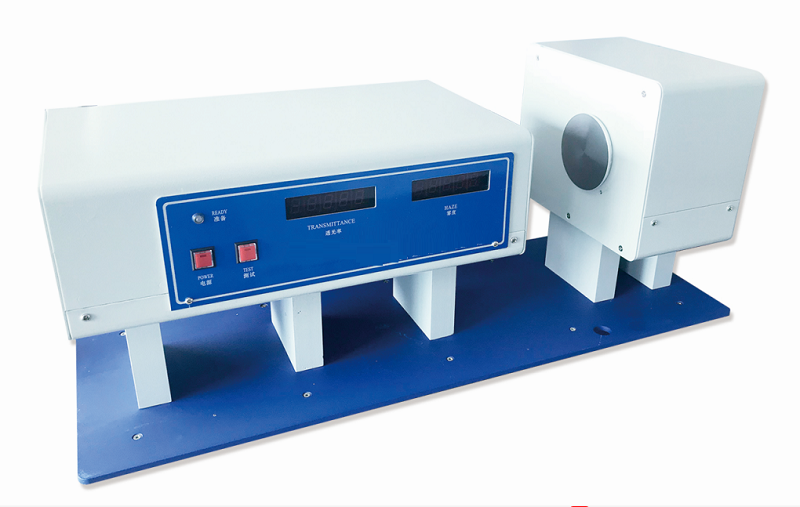

LZ122B Haze Meter
Product Features
Adopt the parallel lighting, hemispherical scattering, and integral ball photoelectric receiving mode. The micro computer automatic controls test system and data processing system, convenient operation, no knob, and a standard print output pull,automatically display the average value of transmittance /haze repeatedly measured. The transmittance results is up to 0.1 % and the haze degree is up to 0.01 % . No zero drift, confidence is strong, the specific structure- Open sample window is almost not limited to sample size, fast measurement speed. Due to the adoption of regulated products, instrument is not influenced by the environmental light so it does not need the darkroom; guarantee the safety of operators of large sample. Electronic circuit of the computerized with high precision, a standard data output interface, supporting the supply remote printer.
Technical standards

Items	Parameters
Dimension of sample room	The radius of a window 25mm;Out of the window radius 21mm
Light source	C lamp-houses(DC 12V 50W Tungsten halogen lamp+color temperature sheet)
Receiver	Silicon photocell+visual function correction sheet(V(λ))standard value
Accuracy	4.Transmittance:0.1%;Haze degree:0.01%
Testing range	Transmittance:0-100.0%;haze degree:0-30.00%(absolute measurement)
Sample size	50mm*50mm
Tank size	50*50*10mm
Dimension	740mm*270mm*300mm
Net weight	21kg
Power	220V 50Hz
Environmental conditions	10-50℃
