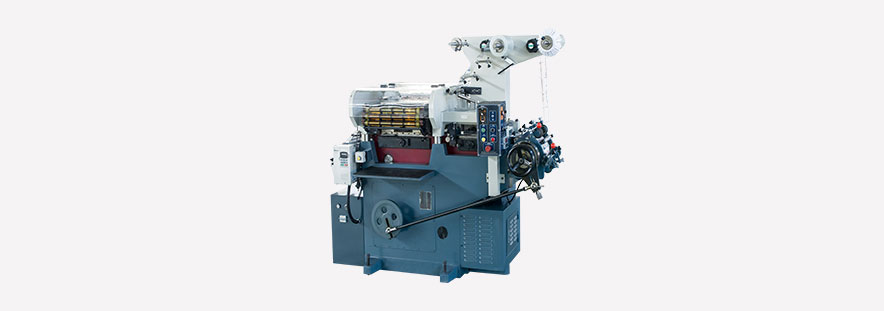

LZ-220A/220 Automatic Label Printing Machine
Main Features
1. Main machine adopts flat bed design, printing and die-cutting touches gradually, and the pressure is balanced to make sure the quality of printing.
2. Frequency control, the speed between 3000-12000t/h can be adjusted freely.
3. The die-cutting seat can be adjusted from left to right, up and down, it is easy to test.
4. The suction device is equipped; the feeding is more stable with higher printing quality.
5. Easy to maintain, auto lubricating system, ensure the high speed of the driving parts.
6. Totally enclosed design ensures the printing safety and easy operating.
7. Frequency converter, clutch, chains, oil parts, standard parts and bearing parts are imported to
8. Make sure high performance without malfunction.
Main Specification
Item LZ-220
Printing Size(mm) 200×145 (2 colors)
200×90 (3 colors)
200×65 (4 colors)
Printing Plate Size 200×300 (mm)
Die Cutting Size 200×200 (mm)
Max. Paper Size 220 (mm)
Max. Paper Backward 200 (mm)
Printing Speed 50-200 (r/min)
Main motor 2.2 (kw)
Suction Motor 0.6 (kw)
Weight(kg) 3100 (Net Weight)
3600 (Gross Weight)
Overall Size(L×W×H) 1950×1150×1700 (mm)
Item LZ-220 A
Printing Size(mm) 210×170 (2 colors)
210×120 (3 colors)
210×85 (4 colors)
Printing Plate Size 210×380(mm)
Die Cutting Size 210×200(mm)
Max. Paper Size 220 (mm)
Max. Paper Backward 200 (mm)
Printing Speed 50-200 (r/min)
Main motor 2.2 (kw)
Suction Motor 0.6 (kw)
Weight(kg) 3500 (Net Weight)
4000 (Gross Weight)
Overall Size(L×W×H) 2100×1150×1700 (mm)
