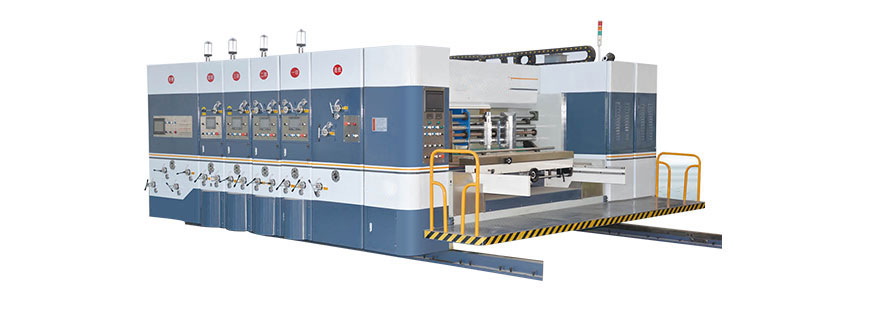

LZKM10/12/14/16 Automatic High-speed Water-based Printing Slotting Die-cutting Machine
Main Features
1. This machine is designed and produced based on high quality,high speed,high efficiency,relliabilitly and safety,with the advantages of quickly changing order and easy operation.
2. Adapting imported PLC with touch screen control.It can save order,and accelerate the changing order speed.
3. Adopt high quality material and assembiy part.
4. All cylinders and rollers are chrome plated for ideal hardness.
5. Transmission gears from precision grinded alloy steel and with spraying type clrculating lubrication system.
6. Use expansion sets tight link to reduce abrasion of the shaft,keep high precision of the machine with long time.
7. Adopt hanging structure,auto reset,quick changing order.
8. Each unit is equipped with Emergency Stop switch to ensure safety operation.
9. Using Self Locking gap adjustment device for easy operation.
10. Electric element,bearing,and pneumatic element all use international famous brand.

Main Specification
Model 1020
Max.machine speed 220pcs/min
Max.feeding size 1000×2200mm
Skip.feeding size 1250×2200mm
Max,printing area 950×2000mm
Min.feeding size 260×650mm
Max.Depth of slotting 250mm
Registration precision ≤±0.35(four color)
Printing plate thickness 7.2(Including board support)
Printing plate thickness 2.5-9
Min.slotting interval
Normal Reverse
150×150×150×150
250×50×250×50
Model 1224
Max.machine speed 180pcs/min
Max.feeding size 1270×2600mm
Skip.feeding size 1500×2600mm
Max,printing area 1200×2400mm
Min.feeding size 320×750mm
Max.Depth of slotting 320mm
Registration precision ≤±0.4(four color)
Printing plate thickness 7.2(Includ board support)
Printing plate thickness 2.5-12(10mmfor die - cutting)
Min.slotting interval    Normal
                                 Reverse
150×150×150×150
250×110×250×110
Model 1428
Max.machine speed 160pcs/min
Max.feeding size 1500×3000mm
Skip.feeding size 1800×3000mm
Max,printing area 1430×2800mm
Min.feeding size 350×750mm
Max.Depth of slotting 390mm
Registration precision ≤±0.4(four color)
Printing plate thickness 7.2(Including board support)
Printing plate thickness 2.5-12(10mmfor die-cutting)
Min.slotting interval
Normal Reverse
150×150×150×150
250×110×250×110
Model 1630
Max.machine speed 140pcs/min
Max.feeding size 1660×3200mm
Skip.feeding size 2000×3200mm
Max,printing area 1600×3000mm
Min.feeding size 400×750mm
Max.Depth of slotting 430mm
Registration precision ≤±0.5(four color)
Printing plate thickness 7.2(Including board support)
Printing plate thickness 2.5-12(10mm for die-cutting)
Min.slotting interval
Normal Reverse
150×150×150×150
250×110×250×110
