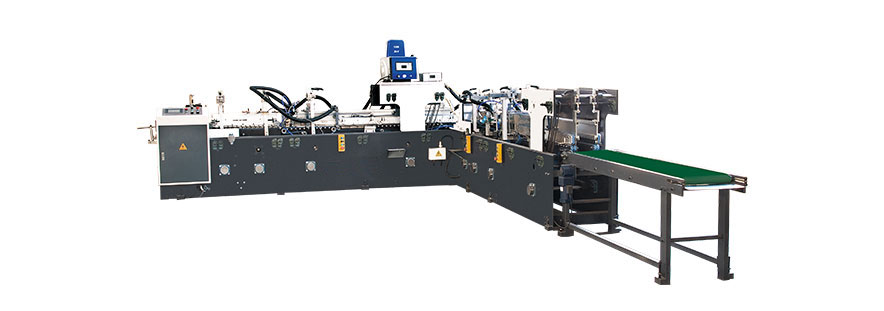

LZ-320 Cardboard Gasket Molding Machine
Main Features
1. The machine is designed reasonably, simple structure, and operation convenient.
2. The max. speed is 80-120m/min.
3. The electrical adopt the touch screen , Frequency converter drive ,Principle Logic Controller, Photoelectricity detection , the automatic control is more reliable, precision is more accurate, adjustment is more convenient .
4. Adopting the double tooth rod adjustment to change the products, simple and convenient.
5. The paper conveying adopt the servo motor, equipped with the down suction, import rotary encoder, paper delivery accurate.
6. Import hot adhesive system, gluing accurate and firmly.
the forming is 180°and 90° two parts, suitable for the four sides gluing, forming products.

Main Specification
Model LZ-320
Max. Paper Size 280×320mm
Min. Paper Size 150×150mm
Total Power 9kw
Speed 80-120m/min
Dimensions 3750×900×1300+3480×1150×1300mm
Weight 4T
