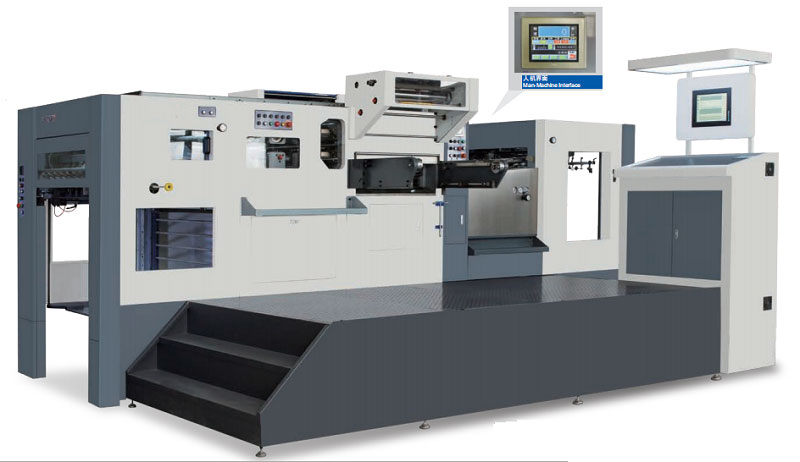

JP-1050T Automatic Die Cutting and Foil Stamping Machine
JP-1050T Automatic Die Cutting and Foil Stamping Machine
Characteristics
· High efficiency feeder adopt four suckers and four delivery,the feeder height and angle of suction nozzle can be adjusted easily,ensures smooth and fast feeding.
· It adopts plc computer program control and man machine touchscreen, which can dynamically detect and display the running state of the machine. Easy adjustment and fast troubleshooting.
· Front lay positioning adopts straight line,the precision of front lay can be adjusted any time. and test paper in place, to ensures high precision of registration and die cutting to avoid waste.
· Adopt hard aluminum alloy to make the gripper bar, strong and light,can deliver the paper stable under high speed. Add adjustable device for front and back positioning of gripper bar,positioning accuracy of gripper bar can be compensated by adjustment due to the wear error of main chain or parts.
· Side lay positioning combine with push and pull, adjust freely according to the products, no need changing parts,small paper movement and high accurate of die cutting,and optional photoelectric detection positioning accuracy.
· Die cut steel plate use imported high strength, high elastic and high - manganese spring steel, good surface, high hardness, and long life.
· Japan gripper driving chain,matched by prestressed tension,ensure the precision of each set of gripper bar chain.
· Adopt the ternary cam intermittent structure of 240- degree long motion angle to make the gripper runs more smoothly,
· The main drive adopts frequency conversion speed regulation,pneumatic clutch, stable braking, quick clutch, safe and reliable.
· Automatic voltage regulating structure adopts electric digital display,and with accurate and stable adjustment.
· Forced automatic lubrication ensures normal oil supply of main drive and automatic stop without oil.
· Timing lubrication system is connected with PLC touch screen display, automatic control of each lubrication point for timing and quantitative oil lubrication.
· The main oil system adopts clean filtration system to make lubricating oil cleaner and smoother.
· Section adjustable brush and paper stretch blower to stabilize the finished products
· Hot stamping system is more user friendly, operation is more convenient.

Technical parameters
Model JP-1050T
Max.Speed 7500 sheets/h
Max.Stamping Speed 6000 sheets/h
Max.Paper Size 1100×760mm
Min.Paper Size 400×360mm
Max.Stamping Size 1080×740mm
Max.Die Cutting Size 1090×750mm
Paper Thickness Paper(Cardboard):0.1-1.5mm Corrugated(Corrugated board):≤4mm
Max.Working Pressure 260T
Total Power Hot Stamping 36kw
Total Weight Hot Stamping 16.5T
Overall Dimensions 5780×3900×2150mm
