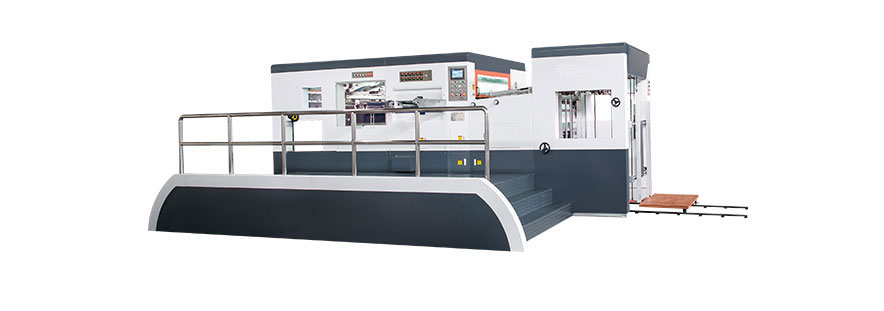

MY1080RP Automatic Deep Press Die-Cutting Machine with Stripping
Main Features
1. The main wallboard is 120 mm of thickness, and up to 600 tons of pressure in order to meet the process requirement for deep press.
2. For card paper, working speed is up to 7000 times/hour, die-cutting precision is less than ±0.1 mm. For corrugated paper, working speed is 6000 times/hour, die cutting precision is less than ±0.15 mm.
3. Die cutting upper platform adds 12 heating temperature zones. Temperature of temperature zone can be individually controlled to make heating temperature uniform, which is used for deep press, hot pressing of unevenness and hot pressing mark.
4. Time-lapse pressure setting deep press function, the pressing time can be set freely on the touch screen, making the deep press firmer and better effect.
5. It has the functions of one-time stripping, and can strip all paper scrap and scrap edge irrelevant to packing boxes (other than gripper edge) when die cutting, saving the manpower, and improving the production efficiency.
ogram control, and install a man-machine interface display screen in both of operating surface and paper receiving surface to constantly monitor the machine running state
6. Front lay positioning adopts four electric front guide mechanisms, and installs four photoelectric detection switches.
7. Lateral positioning adopts integration design for pull lay and push lay, and can be adjusted to swap pull and push position so as to adapt to the die cutting of card paper and corrugated paper, and has a photoelectric detection for position accuracy of paper.
8. Electric digital display is used for the lifting pressure so that pressure size, position and pressure precision die of cutting platform are easy to be adjusted in the man-machine interface display screen.
9. High-strength aluminum alloy gripper bar makes gripper smooth to effectively prevent the vibration of gripper bar.
10. Front-back localization of gripper bar adds an adjustable device, and the positioning precision of gripper bar can be compensated for main chain or parts wear error by making small adjustments.
11. Five critical components bearing die cutting pressure, including left and right die wall, upper platform, moving platform and base frame, are from high temperature integral casting of pressure-proof high-strength ductile iron, and experience a long-time stress release and tempering, and aging treatment, to ensure the permanent non-deformation and stable pressure in the high pressure die cutting.
12. Circulating oil cooling system can ensure the internal joint lubrication effect of main drive. Forced self-lubrication system ensures the normal internal oil supply of main drive, and avoids automatic stop without oil. Timing lubrication system automatically controls the timing and quantitative oil lubrication of all lubricating points.

Main Specification
Model MY1080RP
Max. feed size 1080×780mm
Max. paper size 1060×760mm
Min. feed size 400×360mm
Max. die cutting speed 7000 times/hour (card paper) / 6000 times/hour (corrugated paper)
Max. stripping speed 6000次/小时 6000 times/hour
Die cutting precision ±0.1mm
Max. working pressure 600T
Sheet thickness Paper processing thickness (card paper) 100-2000g/m2corrugated paper ≤ 4 mm
Number of heating zone 12区
Temperature of heating plate 40-190℃
Max. height of feed pile 1500mm
Max. height of receiving pile 1500mm
Total power 29.5KW+24KW(Heating)
Total weight 22T
External dimension 6600×2300×2300mm (No1800mm pedal)
