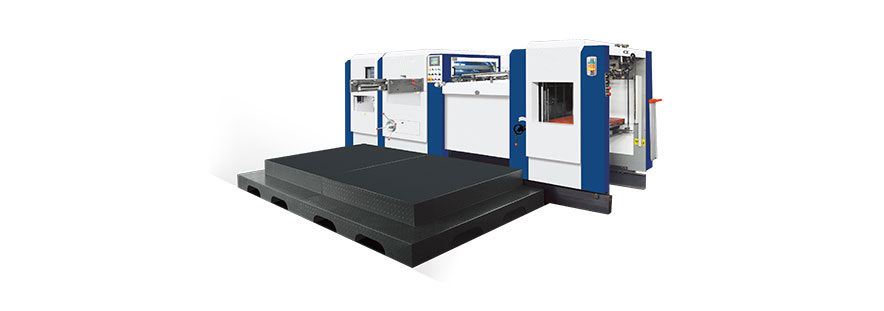

LZ-800T Automatic Die-cutting and Creasing Machine
Main Features
1. High Strength ductile castings to ensure constant stabilizationand die-cut precision.
2. Monitor in front to Show machine working speed, die-cut number and total running hours.ww
3. World-wide well-known brand electric component makes the running of the machine smooth and reliable.
4. Fast pneumatic clutch and chase locking.
5. Frequency inverter to control main motor, stepless speed increasing and decreasing.
6. Program control device and Man-machine interface.

Main Specification
Model LZ-800T
Max. Sheet Feeding Size 810x620mm
Min. Sheet Feeding Size 400x350mm
Max. Die-cutting Size 800x610mm
Paper Range Card Board:0.12-2.0mm;corrugated Sheet≤4mm
Feeding Pile Height 1300mm
Delivery Pile Height 1100mm
Min. Gripper Edge 7mm
Max. Machine Speed 6500S/H
Max. Die-cutting Speed 6000S/H
Die-cutting Precision ±0.10mm
Die-cutting Pressure 250T
Total Power 14kw
Overall Dimensions 4300X1880X1750mm
Total Weight 10.5T
