Home > Our Products

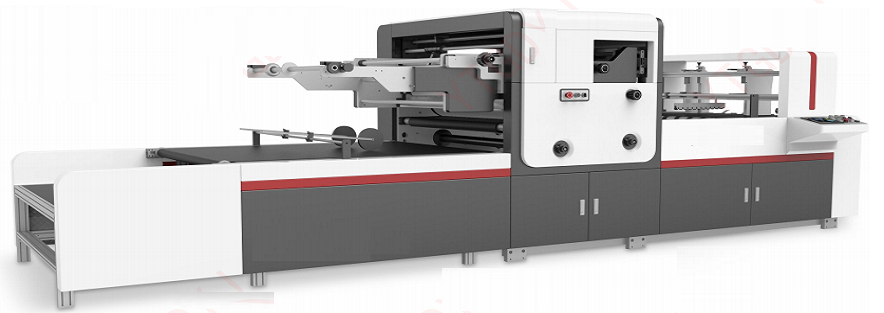

Window Patching with V-cut and Creasing line
Tangshan Laizhang specializes in the production and manufacture of window patching machines for more than ten years, with rich experience in design, manufacturing, after-sales management, the product has unique insights into mass production and manufacturing, equipment throughout the world, product speed, quality, safety, high cost performance.
Model LZ-800Q LZ-1100Q
Max. Paper size 760×650mm 1100×650mm
Min. Paper size 100×100mm 100×100mm
Max. Film size 460×380mm 850×500mm
Min. Film size 40×20mm 40×20mm
Film thickness 0.03-0.3mm 0.03-0.3mm
Max. Working speed 5000s/h 5000s/h
Cardboard 200-1200g/m2 250-1200g/m2
Corrugated paper ≤5mm ≤5mm
Total power 8Kw 9Kw
Total weight 2700kg 2980kg
Overall Dimensions 4800×1405×1520mm 4998×1800×1520mm
Overall Dimensions
(When the roller is pulled out)
4800 ×2100×1520mm 4800 ×2650×1520mm
