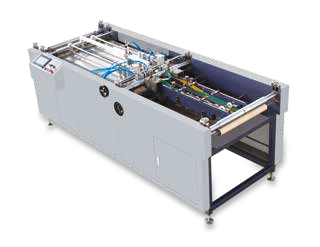

LZ-550  Automatic Four Edges Wrapping Machine

Features

The machine adopts pneumatic and mechanical principles, it can wrap the four sides in one time. In the production of various types of gray board, fiber board, wrapping various face papers without scratch or bubbles in one time. The machine has high automation and can be connected with automatic gluing machine to increase production yield.

Technical Parameters

Max. Size	550x1000mm
Min. Size	90x220mm
Cardboard Thickness	1-5mm
Speed	20-30pcs/min
Air Power	0.4-0.6Mpa
Power Supply	380V/220V 50Hz
Total Power	2Kw
Dimension	2700x1200x1100mm
Weight	750Kg
