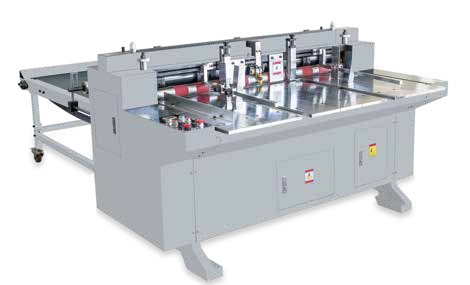

LZ-1300/1500  Automatic Cardboard Slitting Machine

Features

Automatic cardboard slitting machine is our new research and development doing cardboard slitting. The features of the machine is easy operate and adjust, working stability. It adopts advanced frequency conversion speed regulation mechanism to make the main motor run, stop and speed stable and reliable. Pressure controlled by pneumatic, thin and thick paper could be changed easily. The paperboard mechanical structure has stable performance and equipped with a adjustable plate, it can be used in a variety of working conditions to suit different boards. Machine adopts centralized refueling device and the advanced rotary knife technology to ensure the blade adjust fast and reliable. Using cast iron for the main body to keep stable of the machine.

Technical Parameters

Parameter	SL-1300	SL-1500
Speed	20-140 Sheet/min	20-140 Sheet/min
Max. Cardboard Size	1200x800mm	1450x800mm
Min. Cardboard Size	47x210mm	47x210mm
Cardboard Thickness	1.2-3mm	1.2-3mm
Max. Feeding Height	225mm	225mm
Power Supply	380V/220V 50Hz	380V/220V 50Hz
Total Power	2.2Kw	2.2Kw
Slitting Number	8 Pcs	8 Pcs
Weight	1900Kg	2000Kg
Dimension (LxWxH)	1755x1050x1100mm	1955x1350x1100mm
