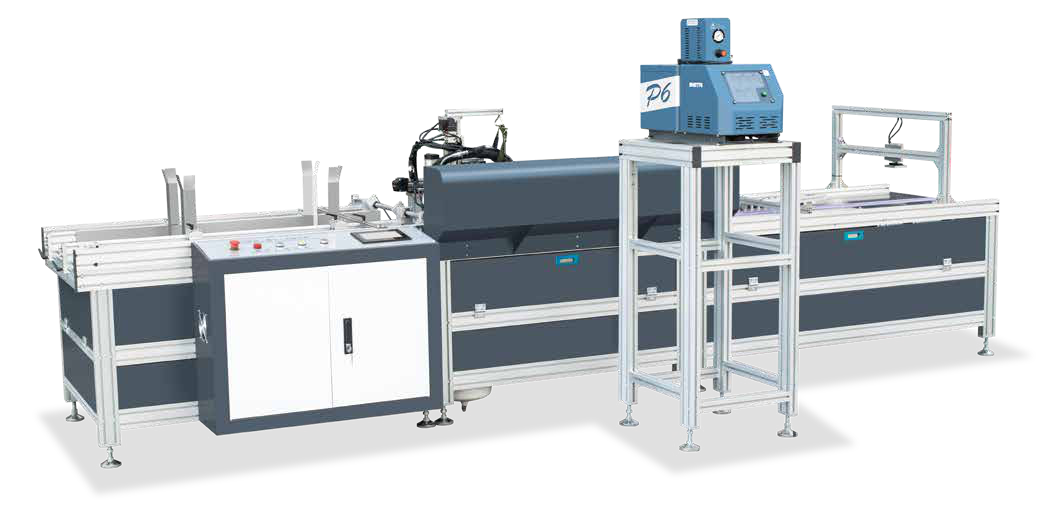

LZ-420Z  Book Box Assembly Machine

Features

Machine adopts servo control system and photoelectric positioning correcting system. It is used for the glue spraying of hardcover and inner box. It can improve efficiency, save labor and make perfect finished products at the same time. Machine with the advantage of stable working and suits for various gluing inner boxes.

Key Features

· Using servo and photoelectric system to make sure the accurate positioning.
· Using high temperature glue melting machine with multi-point heating method to make sure the stability of gluing process.
· Using human-machine interface, easy to operate.
· AIRTAC brand pneumatic components to make sure the stability.
· Transmission system adopts guide rail from Taiwan.

Technical Parameters

Max. Board Size	700x900mm
Efficient Gluing Area	700x700mm
Min. Board Size	90x110mm
Max. Speed	18-40pcs/min
Gray Board Thickness	1.0-5.0mm
Power Supply	380V/220V 50Hz
Total Power	5.5Kw
Air Pressure	0.4-0.6Mpa
Dimension	3100x1900x2350mm
Weight	1100Kg
