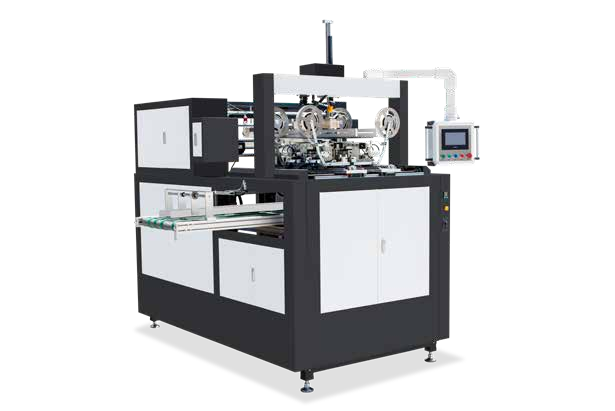

LZ-420T  Automatic Corner Pasting Machine

Features

Automatic corner pasting machine is controlled by PLC, operated by touch screen and driven by servo motor which can paste four corners at one time. Machine has automatic feeding and automatic delivery functions. It is easy to operate with high speed, which can improve the production efficiency and save production costs greatly. The machine can be widely used in jewelry boxes, cell phone boxes, shoe boxes, shirt boxes and other rigid boxes.

Technical Parameters

Air Pressure	0.6-0.8Mpa
Speed	0-50pcs/min
Box Size (Big)	460x480x150mm
Box Size (Small)	40x40x10mm
Tape Width	19mm
Power Supply	220V 50Hz
Total Power	3Kw
Dimension	1300x2300x2300mm
Weight	1300Kg
