| FEATURES

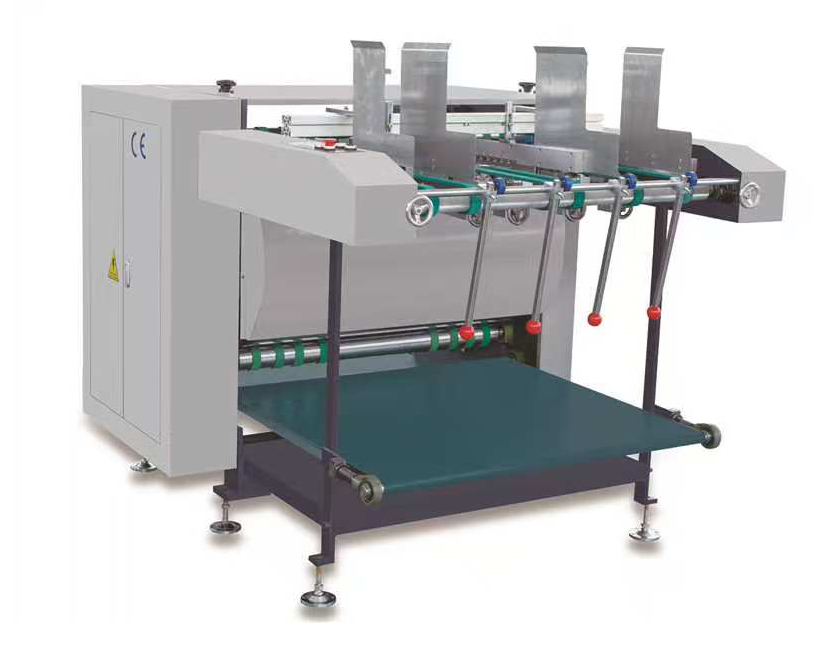

 Automatic grooving machine is doing the V grooves on the variety of hard board, like industry cardboard, gray cardboard, MDF and etc.It is mainly used in high grade box, moon cake box,  phone box, wine box, tea box， shoe box and so on. The machine has the features of high speed, high security. The well grooved cardboard without fringed and dust. The scrap of gray cardboard and MDF with completed strip. The belt running with roller together to send the board to the grooving part and ensures the good slotting effect. The finished board will be conveyed out and do auto stacking, which improve high production efficiency and reduce labor and waste rate, moreover our product price is reasonable, obtains highly comments from our customers.

| TECHNICAL PARAMETERS

Board Width	LZ-1200 100-1000mm	LZ-1500 100-1300mm
Grooving Distance	0-1000mm	0-1300mm
Board Thickness	0.5-4mm	0.5-4mm
Speed	0-40 m/min	0-40 m/min
Grooving Angle	60-150 adjustable	60-150 adjustable
Power Supply	380V/220V 50Hz	380V/220V 50Hz
Motor Power	3.7Kw	3.7Kw
Dimension	2000×1500×1450mm	2200×1500×1450mm
Weight	1500Kg	1700Kg
