| FEATURES

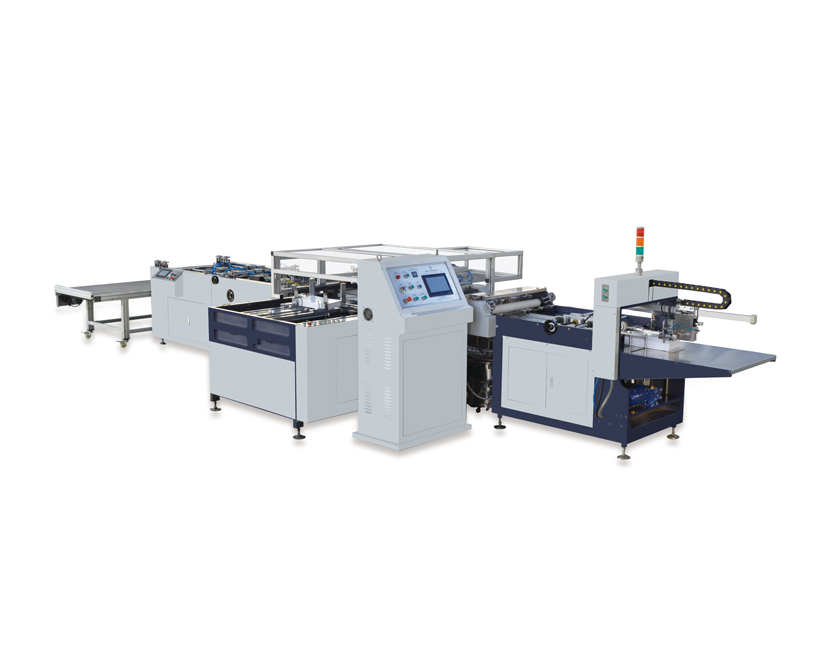

Automatic Hardcover Making Machine consists of feeding unit, gluing unit, positioning unit and one independent automatic four sides edge folding unit. Machine adopts PLC controlling back push type feeder to feed the face paper, with easy operation and long service life. Face paper conveying unit has registration function and unique double pieces detecting and alarming function. Reasonable designed gluing unit ensures even glue. The new designed copper scraper can cooperate with gluing roller better. Conveying.
Sucking belt and strong vacuum pump ensures the smooth transportation. Imported photoelectric is used to do the registration of face paper and the delivery of cardboard adopts linear guide rail and servo control system. Automatic four sides edge folding unit with edge repair function can finish work automatically, collecting unit with automatic lift function. This machine is mainly used to make book covers, folders, desk calendar, wall calendar and box cover fields, with features of beautiful products, high speed, high precision and etc.

| TECHNICAL PARAMETERS

Power Supply	380V/220V 50HZ
Total Power	8Kw
Speed	0-35pcs/min
Air Pressure	0.4-0.6Mpa
Face Paper Width	100-600mm
Face Paper Thickness	100---250g
Cardboard Thickness	1-5mm
Finished Box Size-Max	550×1000mm
Finished Box Size-Min	100×200mm
Min. Center Board Size	8mm
Max. Center Board Size	30mm
Number	6pcs
Positioning Accuracy	±0.2mm
Dimension	2300*8500*1600mm
Weight	3500Kg
