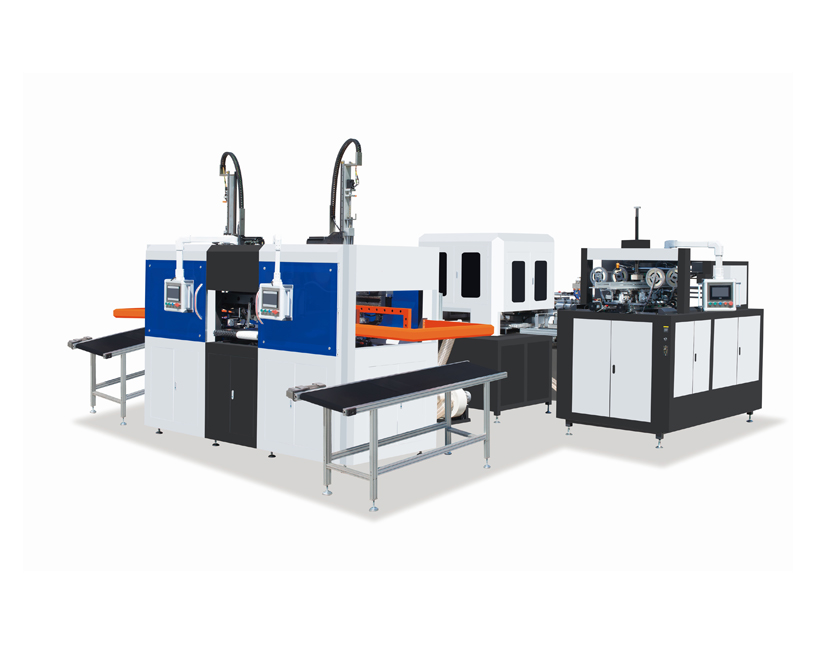

LZ-3040B Automatic box forming machine

FEATURES

The automatic r igid box forming machine is the best equipment for making high-end gift boxes. The design is reasonable and the performance is stable and reliable. It adopts PLC programmable controller, photoelectric induction tracking system, robot & camera positioning system, which the accuracy can be reached to 0.1mm. Through touch human-machine interface, the machine can achieve automatic paper feeding, automatic gluing, automatic gray board feeding, automatic four corner pasting and for ming accuracy ±0.1mm, automatic positioning, automatic edge folding & bubble pressing and other process actions in one time. The whole production efficiency is several times higher than the traditional process. It also has a fault detect, display and alarm function, and the operation is safe. It is suitable for making shoe boxes, jewelry boxes, electronic product packaging boxes and other kinds of gift boxes. (Optional for single / double box forming machine)

 | TECHNICAL PARAMETERS

Power Supply	380V/220V 50Hz
Air Pressure	0.4-0.6Mpa
Forming Box Size (Max.)	350x450x120mm
Forming Box Size (Min.)	50x70x10mm
Alignment Accuracy	0.1mm
Speed	One Forming Machine	25-35 个 /  pcs/min.
	Two Forming Machines	40-60 个 /  pcs/min.
Total Power	One Forming Machine	12Kw
	Two Forming Machines	13Kw
Dimension	One Forming Machine	6500x3500x3000mm
	Two Forming Machines	6500x4500x3000mm
Weight	One Forming Machine	3500Kg
	Two Forming Machines	4500Kg
