| FEATURES

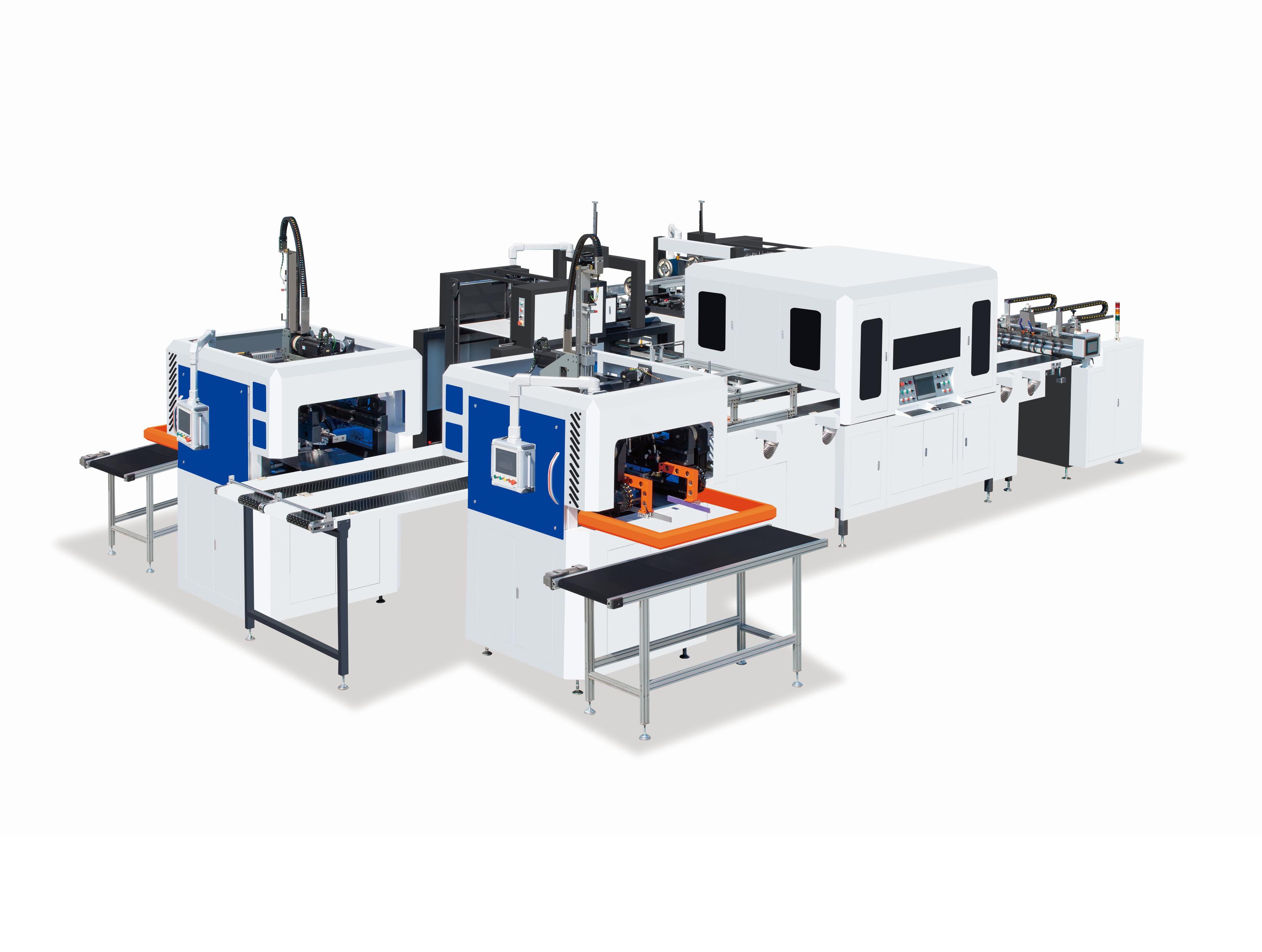

This machine adopts intelligent system, efficient and intelligent one-button operation, convenient and simple start-up and adjustment, double feeder paper feeding, top and bottom cover box (bottom box + cover box), and high efficiency in production, saving customers' storage space. The visual manipulator adopts Yamaha system with good stability and high precision. The corner wrapping machine adopts one-button start, and it only takes 5-10 minutes to adjust the machine. The molding machine adopts a full servo control system and it takes 3-5 minutes to adjust the machine. High inertia servo motor presses bubbles, no need to configure a bubble press machine.

| TECHNICAL PARAMETERS   LZ-3040A

Power Supply	380V/220V 50Hz
Air Pressure	0.4-0.6Mpa
Forming Box Size (Max.)	350x450x120mm
Forming Box Size (Min.)	50x70x10mm
Alignment Accuracy	0.1mm
Speed	25-35 对 / 分钟 pairs/min.
Total Power	28Kw
Dimension	11000x5000x3000mm
Weight	6500Kg
