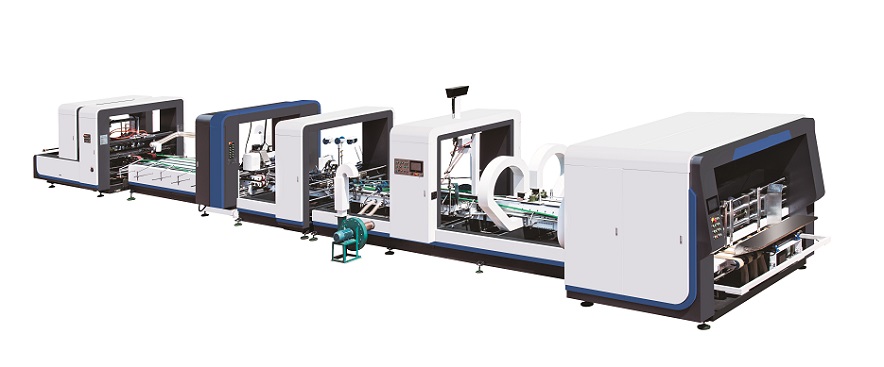

LZ-2800B Automatic Stitching and Folder Gluer Machine
Characteristics
Automatic stitching and folder gluer machine is mainly used in the research and development of replacement of pure manual and semi-automatic folder gluer and nail box molding business. For example, most packaging enterprises in China are operating with pure manual and semi-automatic machines,especially the domestic corrugated box adhesion is not correct, overflows the glue, the problem of adhesive not strong emerges endlessly and the speed of nailing box is slow and inefficient, which brought the enterprise's production management, economy, reputation a lot of adverse effects.

Technical parameters

Max.stitching speed	1200/min	Installation area	17500*3500mm
Min.carton length	220mm	Machine current	30A
Max.carton length	800mm	Machine weight	15T
Machine length	Stitching/Folder gluer 17.5m	Stitching distance	20-500mm
Max.paper length	2800mm	Pitch of nails for intensive nail	30-70mm
Min.carton width	600mm	Plate speed	130m/min
Max.TS width	40mm	Air pressure	0.6-0.8mpa
Power required	50kw
