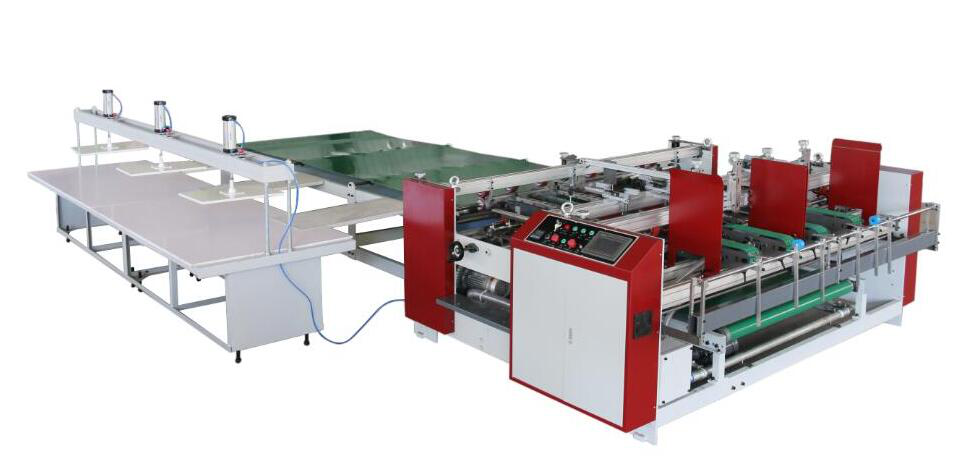

LZAB-2300B Two-piece connected folder gluer machine
Product introduction
Series of JAB folder gluer machine is the development of our company that according to the user's need for AA and AB two pieces molding carton box. it can automatically complete two pieces corrugated paper molding: ensure accurate positioning without deviation; avoid the trouble of workers; production efficiency is improved and guarantee the quality.


Specification
Model\size JAB2300 A JAB2300 B
Max.paper size 1150×900mm 1150×900mm
Min.paper size 460×300mm 460×300mm
Outline dimension 2900×3150×1420mm 7000×3150×1420mm
power 8KW 9KW
weight 2.2T 2.4T
speed 70M\MIN 90M\MIN
Pressure of air 0.4mpa  0.6M3/min 0.4mpa  0.6M3/min
