Product introduction

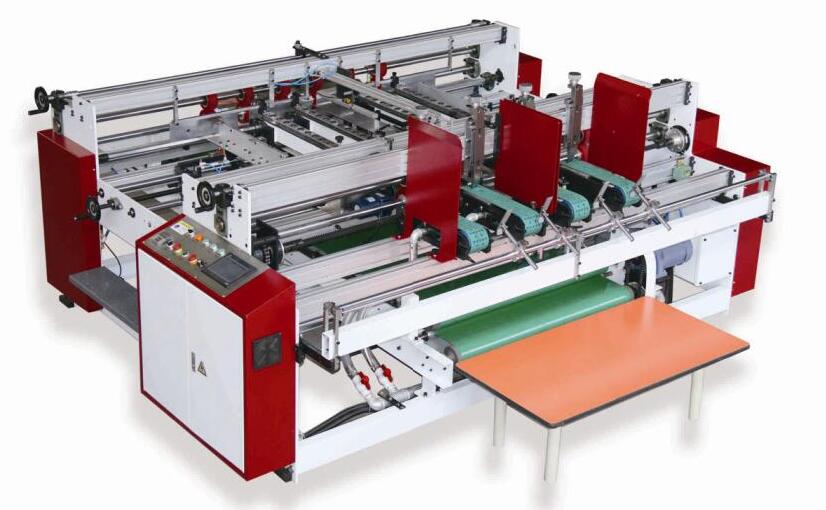

Series of LZAB folder gluer machine is the development of our company that according to the user's need for AA and AB two pieces molding carton box. it can automatically complete two pieces corrugated paper molding: ensure accurate positioning without deviation; avoid the trouble of workers; production efficiency is improved and guarantee the quality.


Specification

Model\size	LZAB-2300 A	LZAB-2300 B
Max.paper size	1150×900mm	1150×900mm
Min.paper size	460×300mm	460×300mm
Outline dimension	2900×3150×1420mm	7000×3150×1420mm
power	8KW	9KW
weight	2.2T	2.4T
speed	70M\MIN	90M\MIN
Pressure of air	0.4mpa  0.6M3/min	0.4mpa  0.6M3/min
