Main Features

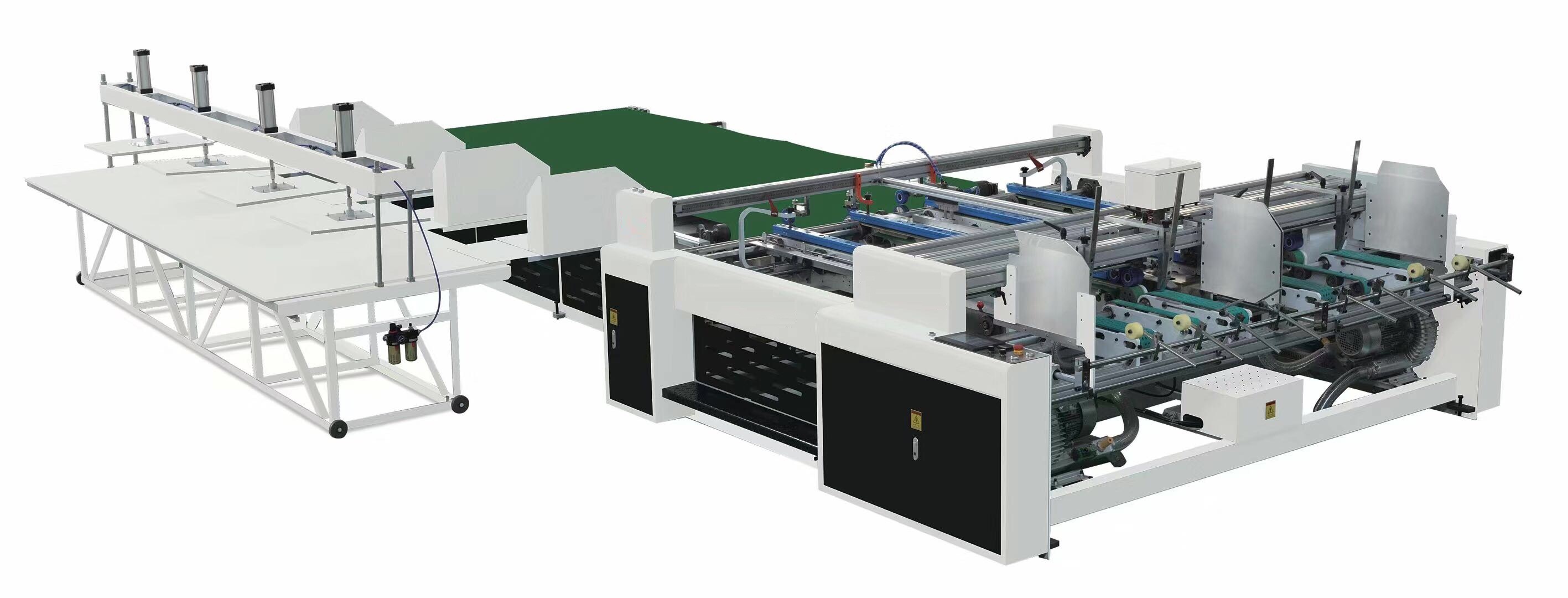

The former semi automatic folder gluer is pasting A and B by hand after gluing (slow speed and bad precision), and now high speed AB gluer machine instead of it.This machine is suitable for hot-melt pressure-sensitive adhesive and water-based sealing glue,glue feed width 20mm-50mm.PLC control servo system.The machine to achieve a variety of adhesive functions.No scratch control system,fast man-machine interface switching function,high precision servo alignment function and fault real - time pop-up system.According to the customer requirements, installed the conveying pressure table or press machine type.

Parameters

Model	LZ-2300	LZ-2600	LZ-2900
Max.paper size	1150×1200mm	1300×1200mm	1450×1200mm
Min.paper size	500×400mm	500×400mm	500×400mm
Total power	16KW	16KW	16KW
Max.speed	3000p/h	3000p/h	3000p/h
Machine dimensions	3050×2800×1250mm	3350×2800×1250mm	3650×2800×1250mm
The whole machine dimensions	4000×6600×1300mm	4300×6600×1300mm	4600×6600×1300mm
weight	3T	3.5T	4T


Specifications are subject to change without notice for improvement.
