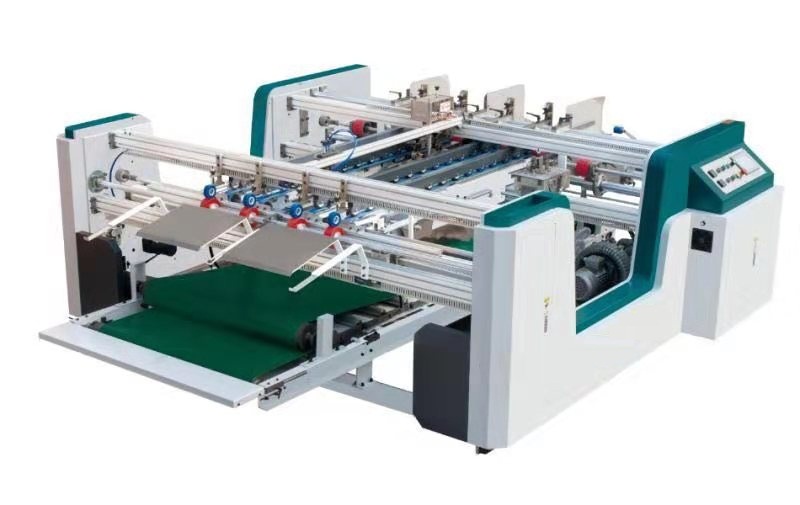

LZ-2300L Double Sheet Folder Gluer
Product introduction:
In existing traditional technology, AB (double) box cementing is often made by hand or by existing semi-automatic gluer machine and then glued by hand, which is slow speed and poor accuracy.
The feeding unit is fed with A and B sheet at the same time,fast feeding speed, high precision, quick adjustment;The folding unit adopts manual folding to solve the problem of inaccuracy of indentation (on and off) and make the precision of the second channel controllable;The pressing unit uses the press bed to keep the pressure transportation, causes the glue to rise in the press bed to stick the localization, guarantees the carton precision,and the application of advanced motion control system, paper accurate, smooth, ensure the high-speed work of the machine, improve the service life.

 Main technical parameter:
          Model
 Parameter
LZ-2300L LZ-2600L LZ-3000L
Max. Paper size(mm) 1150×1150 1300×1200 1500×1200
Min. Paper size(mm) 450×320 450×320 450×320
Speed(sheet/min) 0~60 0~60 0~60
voltage(V) AC380 AC380 AC380
frequency(HZ) 50 50 50
Total power(KW) 13 13 13
Overall dimension(mm) 2800Χ3300Χ1400 2800Χ3600Χ1400 2800×4100×1400
