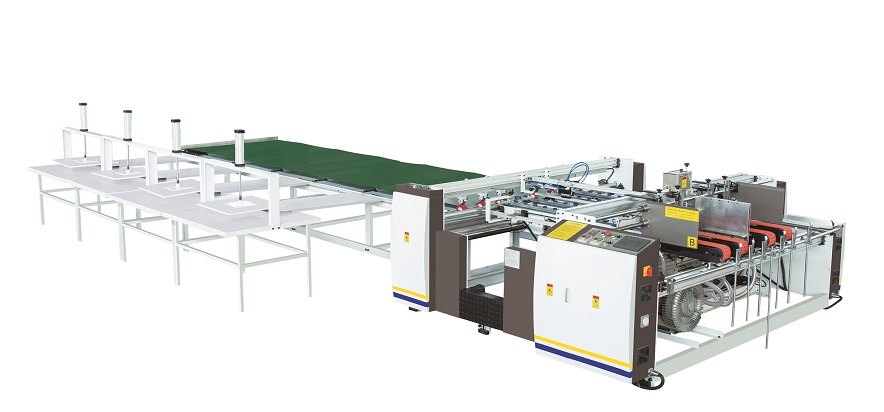

LZHX-2000B/2300B High-Speed AB Gluer Machine
Main Features
A types are built-in type and B types are station type. These machines use frequency converter for speed regulation, PLC central control, simulation to digit program system, together with high speed clutch, which ensure high accurate running.
It is equipped with independent paper feeding system and strong suction feeding device, which ensures smooth feeding for both double pieces and single piece. When doing double sheets, the gluing (hot melt glue) can be done dynamically with four side registration, thus guarantee high accuracy. After double sheets sticking, they need to be formed manually at the folding unit.At the same time, the bad creasing line and corrugated line can be corrected manually as well.
Main Specification
Model LZHX-2000B
Paper size(mm) Max. 1000×800
Min. 450×320
Machine speed(p/h) 0-2100
Applicable Paper A-E corrugated five ply
A-E corrugated board and 5 ply cardboard
Dimensions(mm) 6000*4500*1400
Power(KW) 5.8
Total weight(kg) 3300
Model LZHX-2300B
Paper size(mm) Max. 1120×850
Min. 450×320
Machine speed(p/h) 0-2100
Applicable Paper A-E corrugated five ply
A-E corrugated board and 5 ply cardboard
Dimensions(mm) 6600*4500*1400
Power(KW) 5.8
Total weight(kg) 3500
