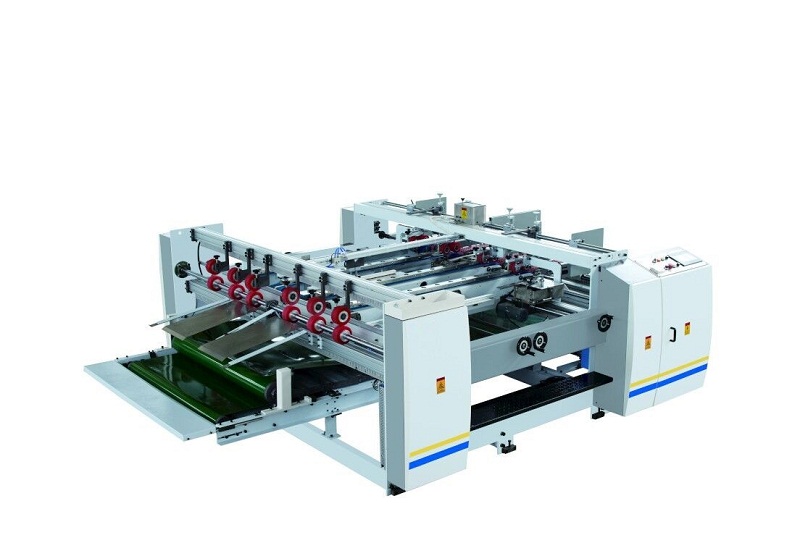

LZHX-2400/2900A High-Speed AB Gluer Machine
Main Features
1. LZHX-2400/2900A series of semi-automatic double-paste machine is my company with domestic and international market demand changes, a comprehensive analysis of similar products at home and abroad, and in-depth study of manufacturing and production processes on the basis of the development of a new "section, "Excellent performance" of the double paste box machine. The machine uses dual servo feed, to ensure the stability of the equipment in the high-speed paper feed and high-speed paper feed synchronization, and the servo feed allows A and B products to set the size of the paper alone, to solve the size of the film problem. Adhesive using double-channel glue, respectively, hot-melt adhesives and ordinary sealing plastic to ensure that products into the container and cold storage after 100% bonding. 2. Two-piece docking positioning is also used in dual-servo paper, to the machine in the low-speed bonding and high-speed bonding provides the same accuracy of consistency. This machine can do flat mouth box and profiled box, the pre-designated my company original, using a regulation and dual-use, for the transfer machine for a short time. The machine for the dual-use machine, double-box and single-chip can be produced by the double-chip box into a single box only 2 minutes to complete.
Main Specification
Model LZHX-2400A
Paper size(mm) Max. 1200×1200
Min. 500×330
Machine speed(p/h) 0-3200
Applicable Paper A-E corrugated five ply
A-E corrugated board and 5 ply cardboard
Dimensions(mm) 3800*3200*1400
Power(KW) 9
Total weight(kg) 2500
Model LZHX-2900A
Paper size(mm) Max. 1400×1200
Min. 500×330
Machine speed(p/h) 0-3200
Applicable Paper A-E corrugated five ply
A-E corrugated board and 5 ply cardboard
Dimensions(mm) 3900*3700*1400
Power(KW) 9
Total weight(kg) 2800
