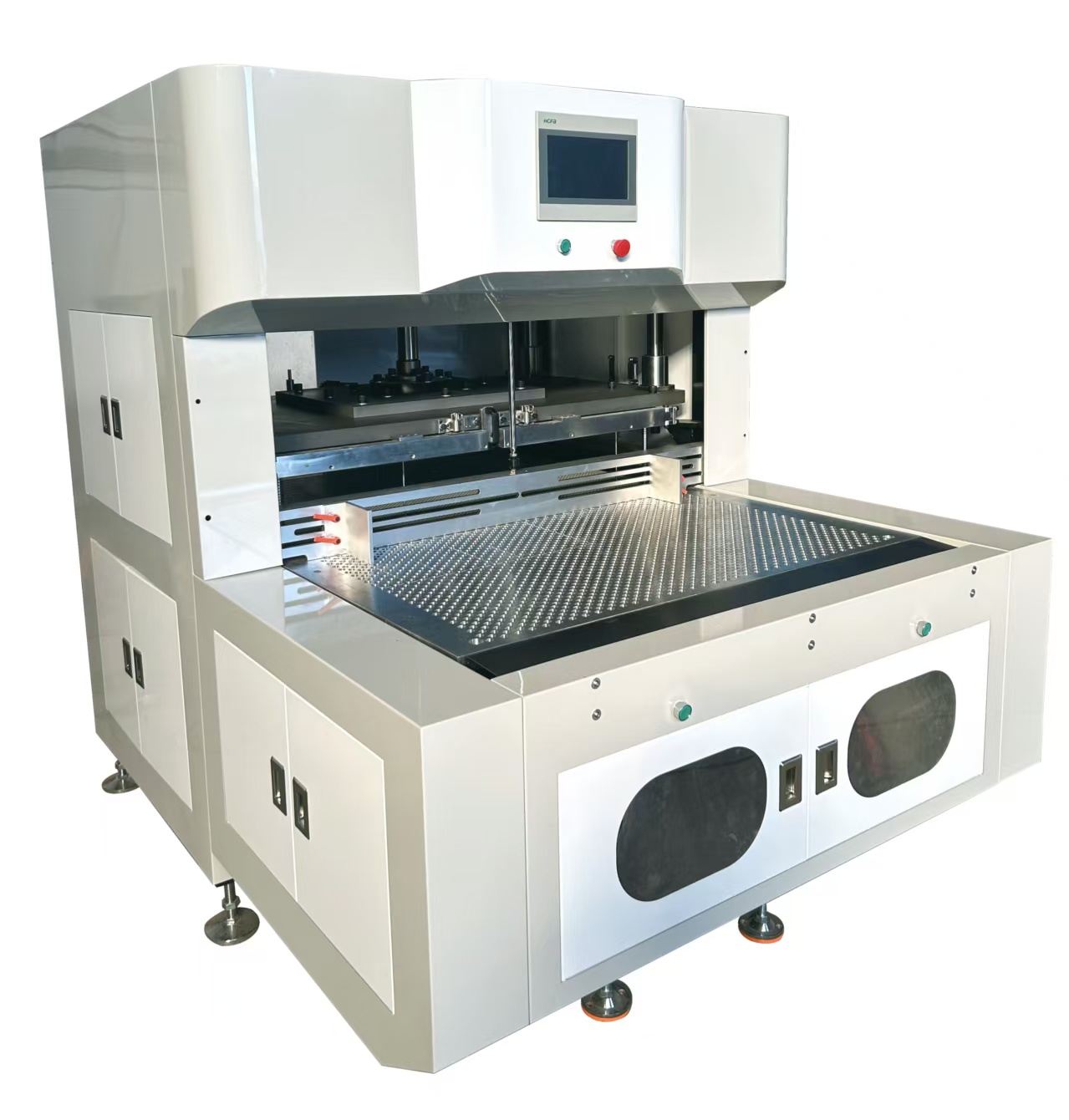

I:Brife Introduction
This procluct is sutable for single, double, plate printing of multiple specfications, specal shrapn and other complex box tyse. Can be cleared at one time, high efficiency, saving time, safety and more reliable.

II:Function:
This machine is mainly used for cardboard, thin ash board and other special-shaped multi-specification and various complex types of imposition of carton waste stripping.

III:Key Outstanding Features:
3.1 The upper honeycomb panel is mainly used for waste paper removal. Made of aviation aluminum, its surface undergoes hard anodizing treatment, featuring wear resistance, high toughness, and resistance to deformation.

3.2 The lower honeycomb panel is mainly responsible for ejecting finished products. Composed of four layers, the top layer guides the ejector pins (with a chrome-plated surface for excellent wear resistance), while the bottom three layers lock the ejector pins with pneumatic locks—ensuring the pins are well-fixed and won’t easily dislodge.
3.3 The paper support platform adopts servo reciprocating motion, offering the advantages of easy paper loading and safe machine adjustment.

IV:Partial description
4.1: Both upper and lower use thimble structure, no need to do a separate ten- plate. accarding to the box type. insert the thimble can be simple and quick coition, no extra cost.
4.2:PLC with servo drive, high precision, simple operation.

Technical parameters

Model	LZ-1080
Machine dimensions	2000x1600x1900mm
Machine weight	2T
voltage	380V/50HZ
Maximum power	5KW
Maximum air pressure	7Mpa
Gas consumption	2L/min
Maximum stack size	1080x780 mm
Maximum pile height	110 mm
Hydraulic action efficiency	10／min
Waste the whole page pressure	13T
Lower ejector pin diameter	∅ 12mm (standard 500 pieces).
Diameter of the cleaning needle	∅ 5mm (small ∅ 3mm).


Note：Due to the limitation of the diameter of the waste cleaning needle of ∅5mm, it is required that the edge of the paper should be more than 7mm as far as possible (tags are not suitable).


Main Primary configuration
Number	Name	Brand	Origin
1	PLC	Manifest control	Shenzhen
2	Display screen	Manifest control	Shenzhen
3	Servo motor	Manifest control	Shenzhen
4	Screw	TBI	Taiwan
5	Relay	Schneider	France
6	Solenoid valves	AirTAC	Taiwan
7	Cylinder	AirTAC	Taiwan
8	Hydraulic cylinder	Longyuan	Zhejiang
9	Upper honeycomb board	Aviation Aluminum	Taiwan
