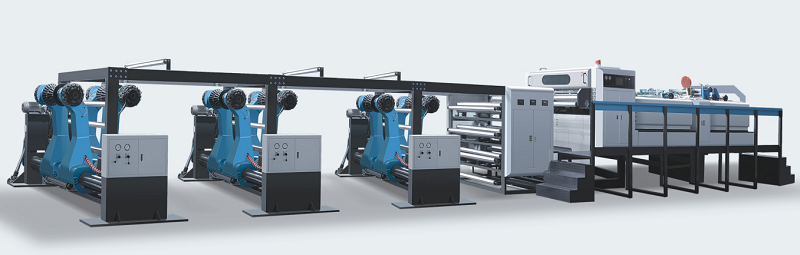

LZ-1100/1450/1750/1950 SERVO PRECISION HIGH SPEED SHEET CUTTER
SERVO PRECISION HIGH SPEED SHEET CUTTER
LZ-1100/1450/1750/1950 servo drive computer high-precision web slitter is a slitting machine developed by the company using advanced technology from Germany and the United Kingdom. The computer control system adopts international brand servomotor and domestic brands. Inverters and conveyor belts adopt NITTA Japan, pneumatic vibrators adopt FINDEVA, and electrical systems adopt Schneider and Omron, so that the speed of paper separation is faster and more stable; precision bearings and broken blades in Germany, cutting accuracy High; touch-type computer interface control, easy to operate; construction of a reasonable recurve rack to ensure that the paper is flat, is currently the paper industry and printing commonly used paper processing machinery.
Parameter
Model LZ-1 100/1450/1750/1950
Reference weight of cutting-paper 50-550g
Model of cutting paper The up knife cut reciprocally and the down knife is fixed

Cutting accuracy ±0.3mm
Gross weight 10.000kgs/11.000kgs/13.000kgs/16.000kgs
Total power 28kw
Power consumption AC380V/220V 50HZ
Max. cutting speed 350cuts/min
Max. cutting meter speed 350m/min
Cutting length range 430-1500mm/430-1650mm/430-1650mm
Paper-piling height 1600mm
Max. scroll diameter 1800mm(71”)Max
Max. paper-cutting width 1100mm/1450mm/1750mm/1950mm
The format of slitting 4 sheets
The request for air compressor Max.5.5kg/cm2*5m3/min
