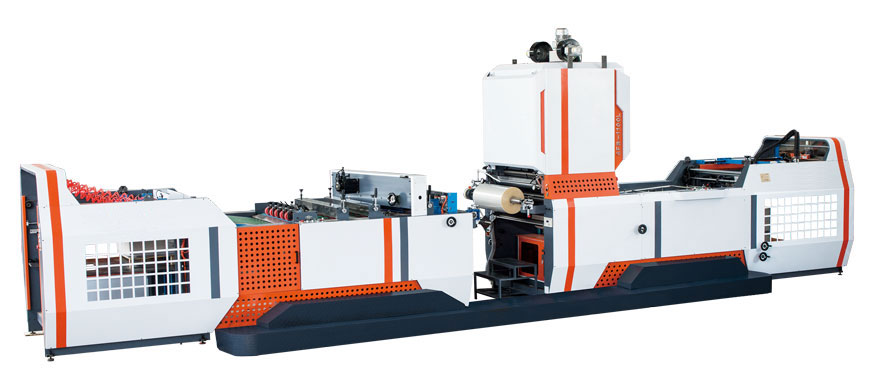

GFM Series Full Automatic High Speed Film Laminator
Main Features

GFM Series Full Automatic High Speed Film Laminator is goodin water based glue film coating job, it can also be applied to solvent-based glue or precoated film and non glue film. First, the machine coats the glue on the film then dried by the big diameter drying roller together with the drying system. In the meanwhile, the sheet is transferred to the laminating unit by the automatic feeder and laminated with the film and pressed by pressing roller through heating and pressing. Both the pressure roller and the drying roller are electromagnetically heated, the heating speed is fast, the temperature control is stable and accurate, and the speed can reach 80 m/min.The combination of these two system make the temperature supply quick and stable. The finished product can be delivered with roll or be cut a notch by the rotary disk knife and separated by rollers. The delivery can be either manually or automatically.

Main Specification
Model GFM-1100X1200
Max. paper size 1080X1200mm
Min.paper size 400X310mm
Laminating speed 10-85m/min
Appropriate paper 105-500g/m²
Total Power 75KW
Energy consumption 38KW
Weight ≈ 8.2T
Overall dimension 12500X2200X3300
Model GFM-1100X1450
Max. paper size 1080X1450mm
Min.paper size 400X310mm
Laminating speed 10-85m/min
Appropriate paper 105-500g/m²
Total Power 75KW
Energy consumption 38KW
Weight ≈ 8.6T
Overall dimension
13500X2200X3300
