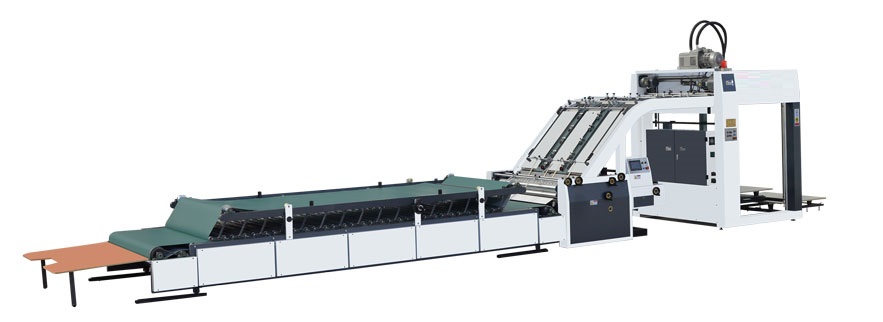

Automatic Flute Laminator
Main Features
ZFM1300/1450/1600 automatic flute laminator adopts automatic feeding system for both paper and corrugated paper. It is used for color printed paper to corrugated board lamination.
Main Specification
|
Model |
LZ-1300 |
|
Max. paper size |
1300×1200mm |
|
Min. paper size |
360×360mm |
|
Paper Thickness |
200—450g/㎡ |
|
Appropriate paper |
A、B、C、D、E、F Corrugated paper thickness≤ 8mm |
|
Lamindin precision |
2—5mm adjustable（Front lay precision ±1.5mm） |
|
Max.speed |
120m/min |
|
Production efficiency |
2000—6000(sheets/h) |
|
Total Power |
12.5kw |
|
Overall dimension |
11500×2150×2300mm |
|
Weight |
5800kg |
|
Model |
ZFM-1450 |
|
Max. paper size |
1450×1200mm |
|
Min. paper size |
360×360mm |
|
Paper Thickness |
200—450g/㎡ |
|
Appropriate paper |
A、B、C、D、E、F Corrugated paper thickness≤ 8mm |
|
Lamindin precision |
2—5mm adjustable（Front lay precision ±1.5mm） |
|
Max.speed |
120m/min |
|
Production efficiency |
2000—6000(sheets/h) |
|
Total Power |
12.5kw |
|
Overall dimension |
11500×2300×2300mm |
|
Weight |
6500kg |
|
Model |
ZFM-1600 |
|
Max. paper size |
1600×1450mm |
|
Min. paper size |
360×360mm |
|
Paper Thickness |
200—450g/㎡ |
|
Appropriate paper |
A、B、C、D、E、F Corrugated paper thickness≤ 8mm |
|
Lamindin precision |
2—5mm adjustable（Front lay precision ±1.5mm） |
|
Max.speed |
120m/min |
|
Production efficiency |
2000—6000(sheets/h) |
|
Total Power |
17.5kw |
|
Overall dimension |
12500×2500×2300mm |
|
Weight |
7000kg |
