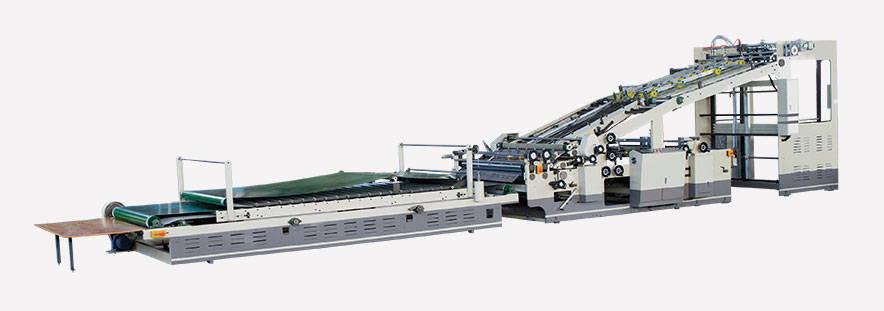

Our company manufacture professionally BZJ series of Automatic Flute Laminator used for printing and packaging industry on the cardboard to cardboard, corrugated to cardboard for fluting, the application of corrugated are A, B, C, D, E, F, N, three, five, seven story can work, fluted a good flatness of the paper, high accuracy. Well-known manufacturers of genuine products are adopted in the main parts of machine, It is long life, good stability. The world's well-known brands products are adopted in electrical parts, imported bearings is adopted in the key parts, to ensure the stability of the whole performance. Machine with good stability and accuracy of the mounted, easy use, low wear and tear, saving time, the advantages of easy maintenance.

Model	LZ-1300
Max. paper size	1300×1100mm
Min. paper size	400×400mm
Mini. weight of bottom paper	300gsm
Max. weight of bottom paper	800gsm
Max. thickness of paper	10mm
Mini. weight of face paper	180gsm
Max. weight of face paper	800gsm
Precision of paperboard and cardboard	±1.2mm
Precision of paperboard and corrugated board	±1.5mm
Machine speed	100sheets/m
Total power	14HP
Total length	12.5M
Total weight	6200Kg
Overall size	12.5×2.3×2.65m

Model	LZ-1450
Max. paper size	1450×1100mm
Min. paper size	400×400mm
Mini. weight of bottom paper	300gsm
Max. weight of bottom paper	800gsm
Max. thickness of paper	10mm
Mini. weight of face paper	180gsm
Max. weight of face paper	800gsm
Precision of paperboard and cardboard	±1.2mm
Precision of paperboard and corrugated board	±1.5mm
Machine speed	100sheets/m
Total power	14HP
Total length	12.5M
Total weight	6500Kg
Overall size	12.5×2.3×2.65m

Model	LZ-1650
Max. paper size	1650×1450mm
Min. paper size	400×400mm
Mini. weight of bottom paper	300gsm
Max. weight of bottom paper	800gsm
Max. thickness of paper	10mm
Mini. weight of face paper	250gsm
Max. weight of face paper	800gsm
Precision of paperboard and cardboard	±1.2mm
Precision of paperboard and corrugated board	±1.5mm
Machine speed	70sheets/m
Total power	14HP
Total length	14.5M
Total weight	7500Kg
Overall size	15×2.65×2.65m
