Home > Our Products

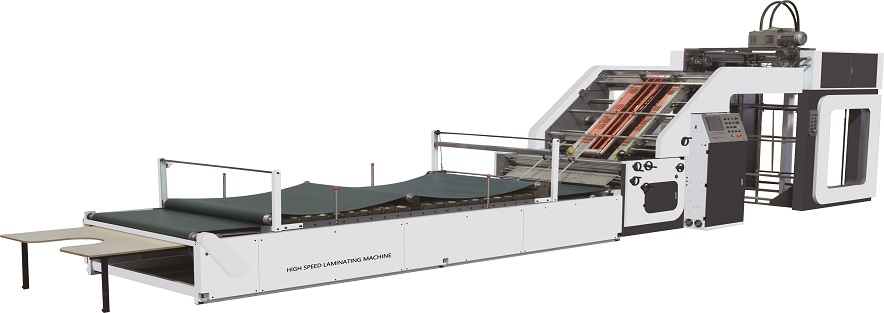

Servo Type High Speed Laminating Machine
Main Features
The machine is combined with the motion control system and the servo correction system. It uses multiple sets of high-precision photoelectric sensors to track and position the paper, and corrects the paper through the servo motor to achieve accurate positioning of the paper and the bottom paper. It has many advantages such as high speed, high precision, convenient operation, etc. It is an indispensable equipment for color printing and packaging users.
Main Specification
Model CGFM-145
Max. Paper Size 1450X1300m
Min. paper Siz 400X400mm
Paper Thickness  150-600g
Base Paper Thickness

A、B、C、D、E、F Corrugated paper  thickness≤ 10mm

Max. Speed 150m/min
Lamindin Precision ±1mm
Total Power 20KW
Weight 6000Kg
Overall Dimension 13.5X2.3X 2.5M
Model
CGFM-1650
Max. Paper Size 1650X1450mm
Min. paper Siz 400X400mm
Paper Thickness  150-600g
Base Paper Thickness

A、B、C、D、E、F Corrugated paper thickness≤ 10mm

Max. Speed 150m/min
Lamindin Precision ±1mm
Total Power 22KW
Weight 6500Kg
Overall Dimension 14X2.5X2.5M
